Turf Cutter TCHYD & Reel Insertion

The Groundsman model TCHYD is a hydrostatic drive Turf Multi Cutter. It has variable speed forward and reverse drive and a rapid transport speed. This model was developed initially to insert irrigation pipe to a depth of up to 15cm in a one pass operation using the Reel Insertion Attachment...

FEATURES - Powerful high traction workhorse - 9HP engine hydroststic four wheel drive - Infinately variable speed forward and reverse - Inserts cable or pipe underground to 13cm depth in one‐pass - Operates on grass or cultivated surfaces

Model: TCHYD

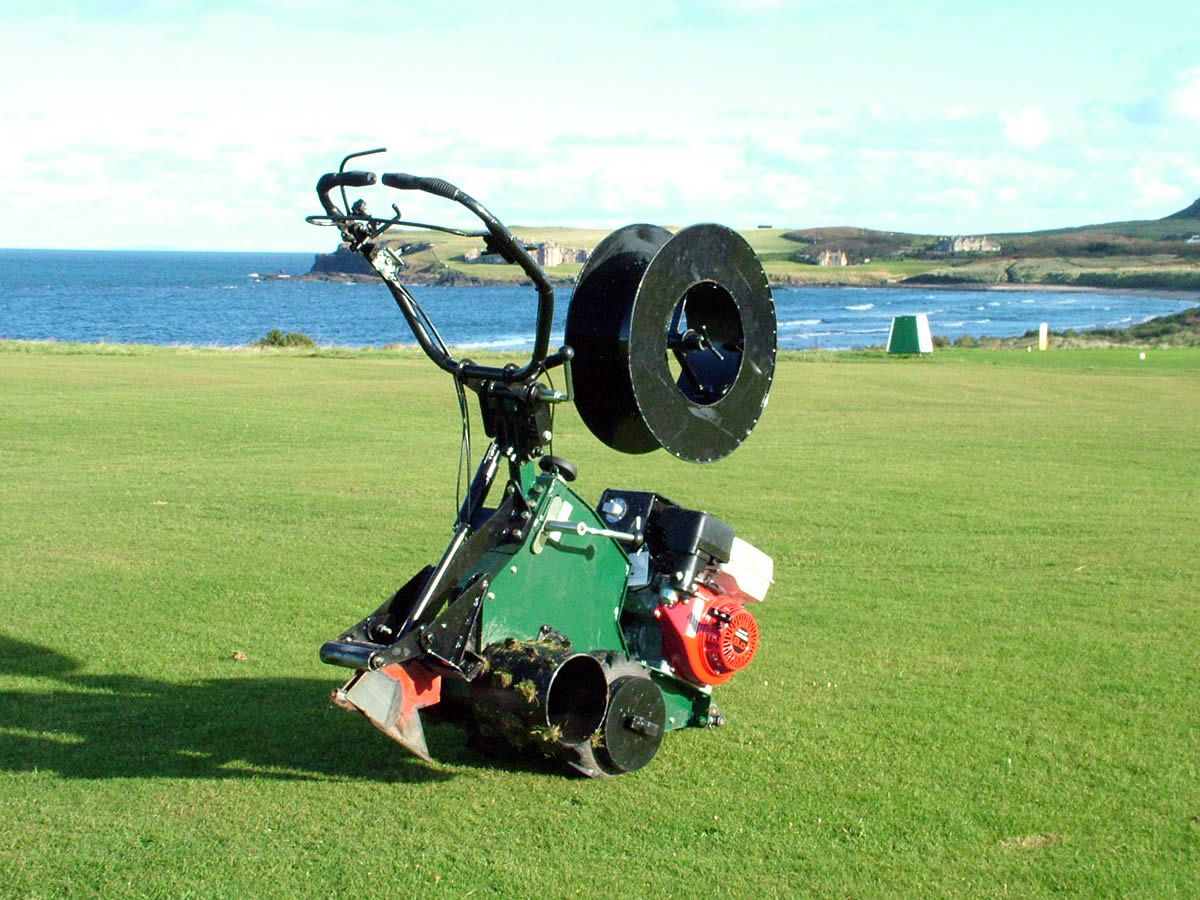

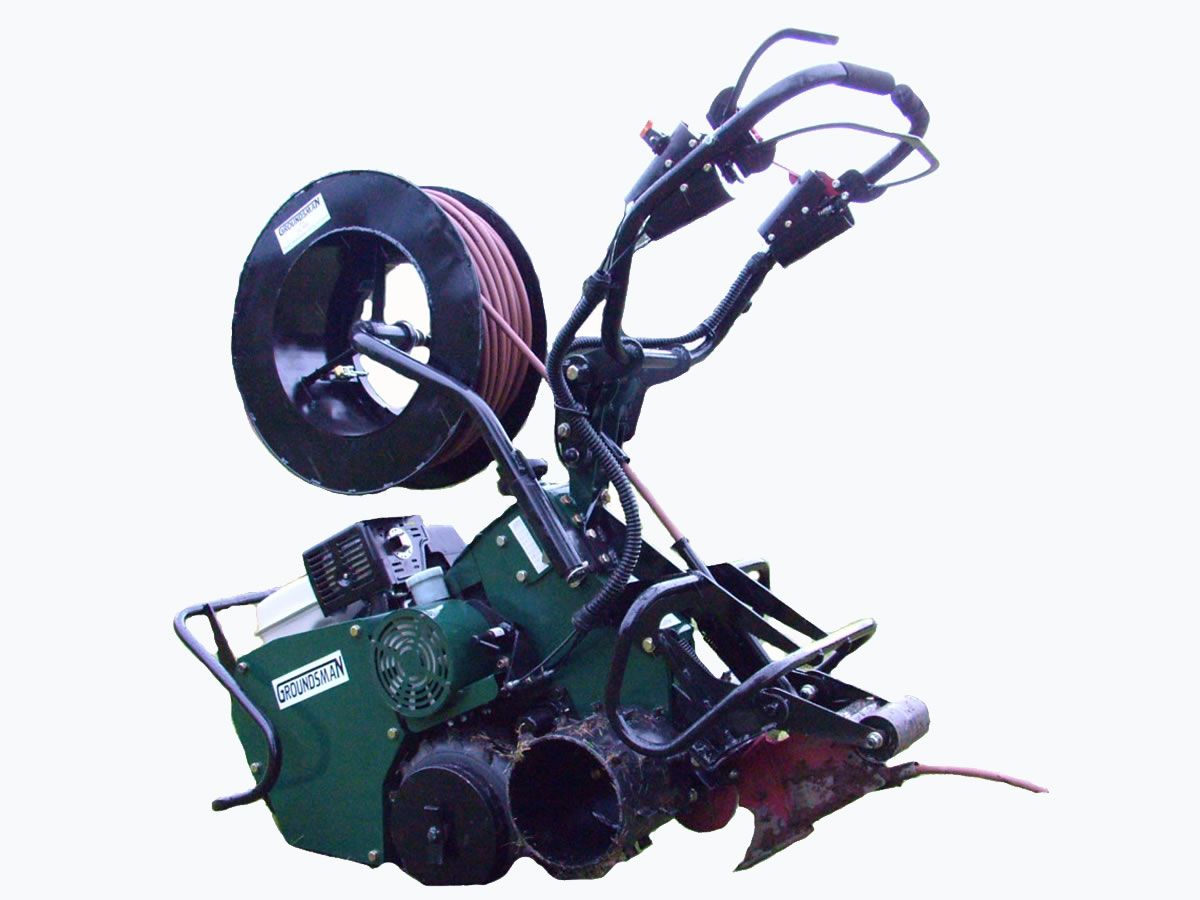

The Groundsman model TCHYD is a hydrostatic drive Turf Multi Cutter. It has variable speed forward and reverse drive and a rapid transport speed.  This model was developed initially to insert irrigation pipe to a depth of up to 15cm in a one pass operation using the Groundsman patented Wedge Blade system and pipe or cable reel attachment.

This high traction work horse is fitted with a 9HP engine and has a Hydrostatic Ground Drive giving variable speed forward reverse and rapid transport. The Cutter Blade is engaged independently by a disc clutch. This machine lends itself to a host of operations and blade configurations to perform many operations including Trenching as well as the regular Turf Cutting functions.

The Trenching function requires a very high traction to weight ratio. This has been achieved by incorporating a hydrostatic drive which allows the operator much more control to feed the power to all four wheels without slip or spin. Wheel weights can be attached to the front axle to increase grip without adversely affecting the operator's ability to manoeuvre the machine. A differential has been incorporated for easy turning.

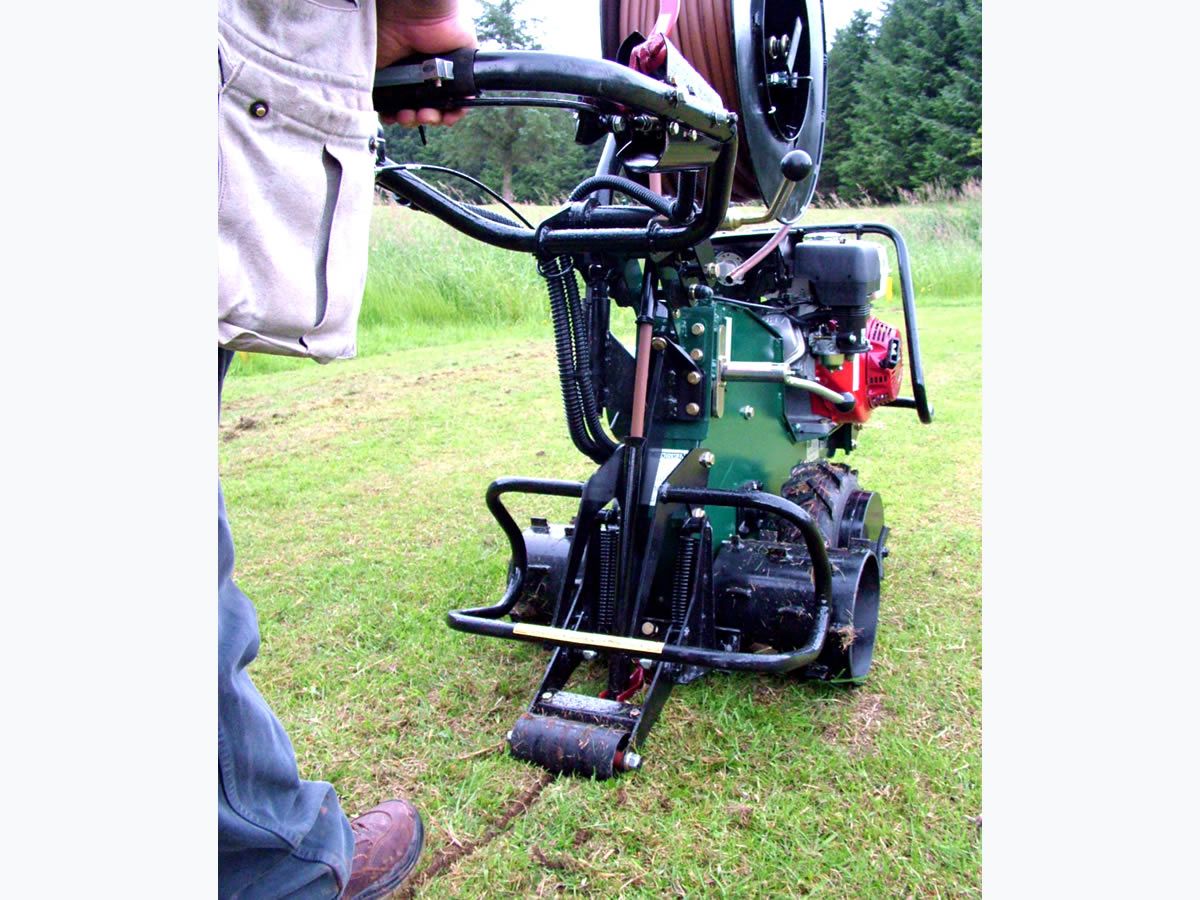

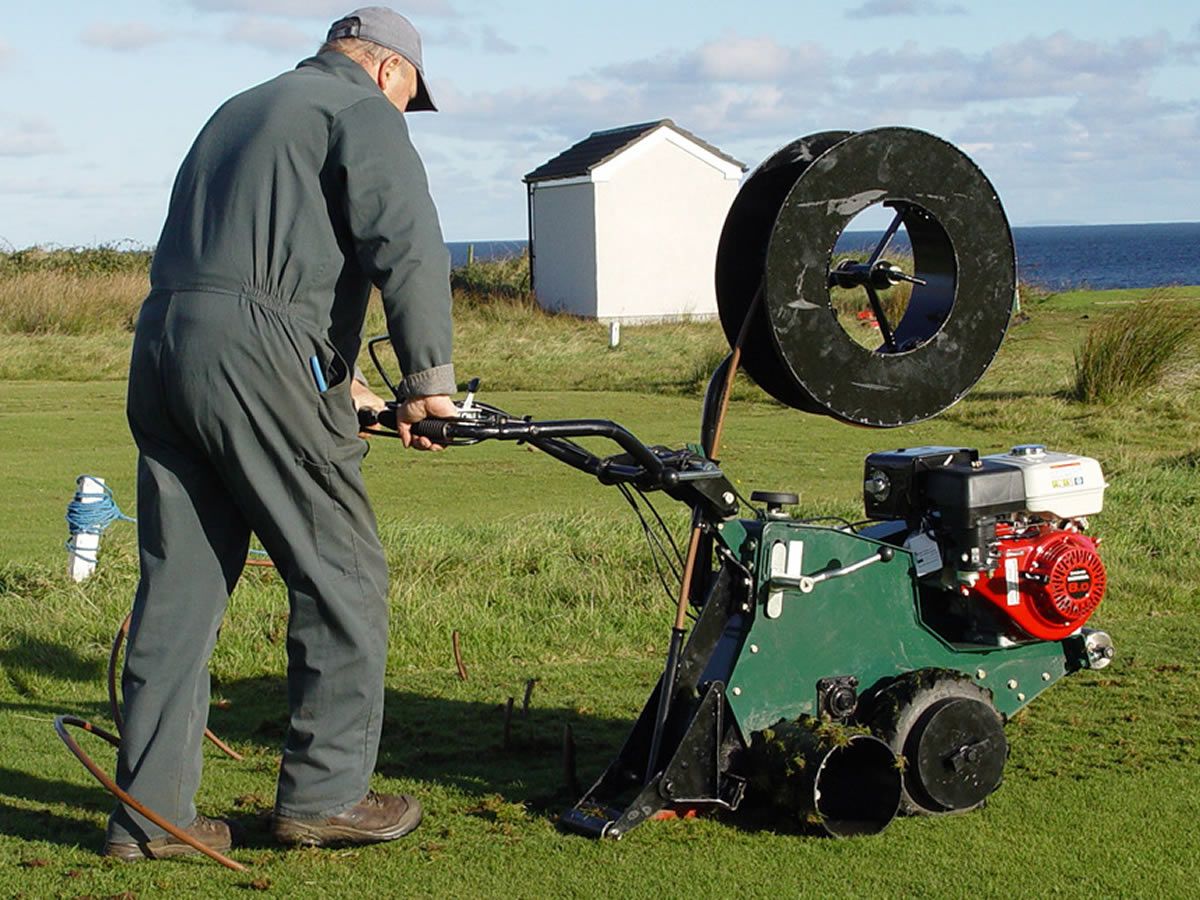

In addition to accepting the full range of Groundsman Turf Cutter Blades, a Wedge Blade Trenching System has been developed specifically for this machine. This system can insert Pipe or Cable from an attached Reel or Materials from a Hopper to a depth of 120mm (5") with minimum surface disruption. A spring loaded vibrating roller is available to close the trench and level the surface.



Technical Specifications

Engine 9 HP Honda GX270
Blade Drive Disc clutch engaging cam crank and centre connecting rod. Sealed bearing through out
Ground Drive Hydrostatic double axle infinately variable forward and reverse four wheel drive with rapid transport
Wheels Front 13-650 x 6 Pneumatic Turf Tyres

Wheels Rear Solid rubber turf tread or steel spade lug wheels in various widths to suit implements
Weight 146kg (321lbs)
Width 56cm (22")
Length 114cm (45")
Height 80cm (31")





Performace Chart

Blade Speed Depth
(Adjustable)
Maximum
Forward
Speed
Coverage

1500 oscillations
per minute


Cuts per metre variable with ground drive speed

Turf Cutting
9 cm (3 1/2")


De-Compact & Mole Drain
13cm (5")

0-40 mtrs/min working

0-100 metres/min transport

  Up to 1500 sq mtrs / hr

* all calculations are based on standard operating engine speed of 3600rpm
