Turf Aerator 345HD

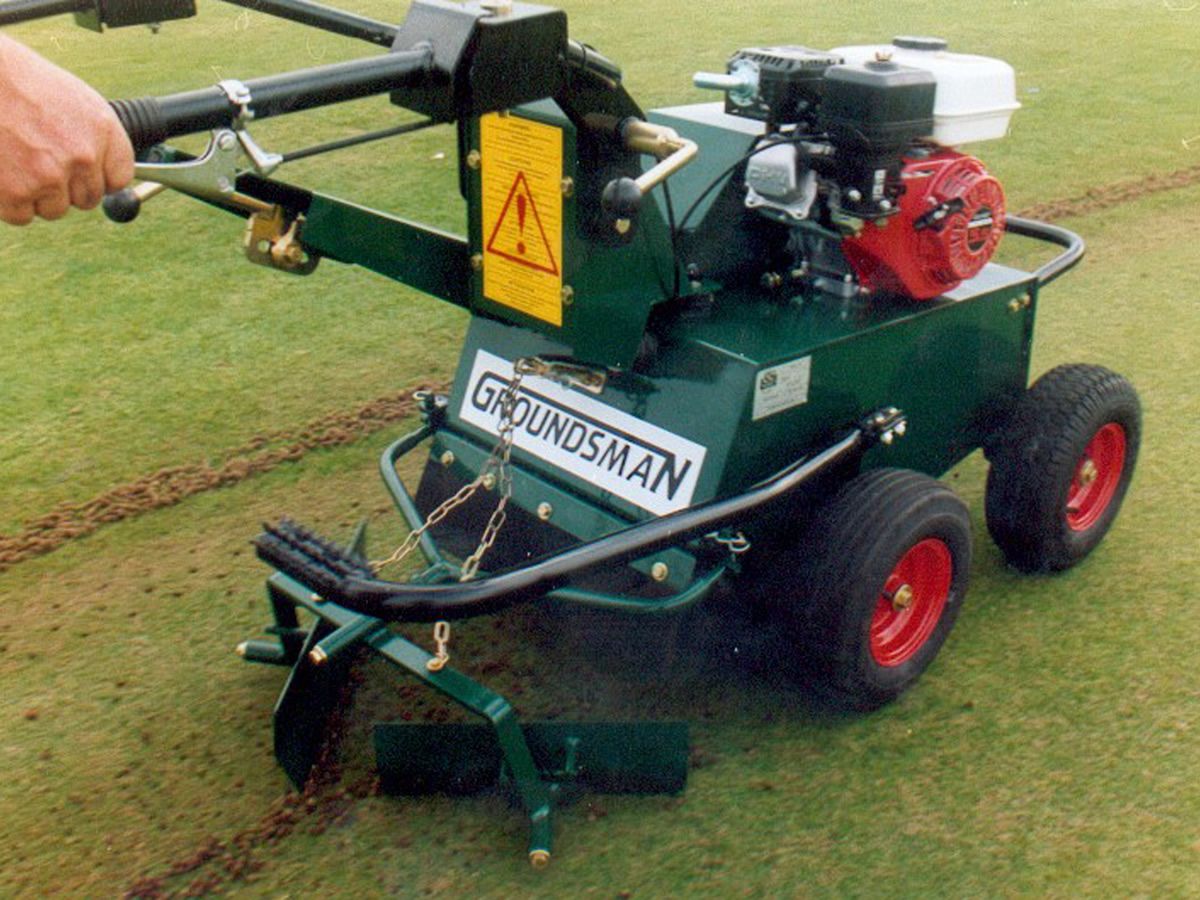

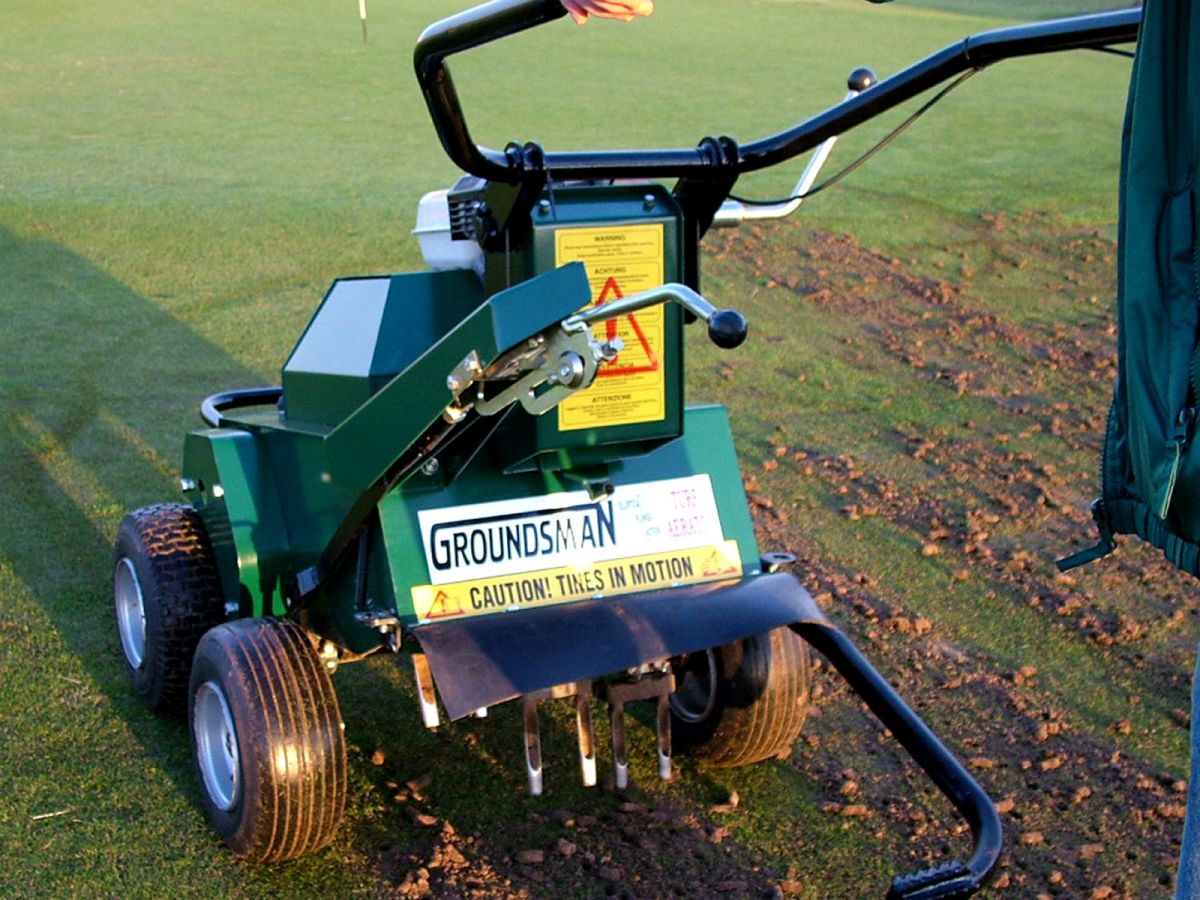

The 345HD uses the same heavy duty aeration mechanism as the Groundsman tractor mounting aerators enabling it to work on all surfaces and conditions from sports turf to estates and gardens where stones and even old foundations can be encountered. This versatile machine accepts the full range of Groundsman tine and holders (see TINES & HOLDERS) and with an overall width of 80cm (32") it can access pedestrian gateways/ doorways etc

*CLEAN EFFICIENT PLUNGE ACTION TO 13CM (5") DEPTH *FAST HIGH DENSITY COVERAGE *LARGE DIAMETER SEALED BEARING CRANK FOR LONG LIFE AND LOW MAINTENANCE *VERSATILE *DURABLE *COST EFFECTIVE

The 345 range use GROUNDSMAN'S elliptical plunge action mechanism for a clean surface finish very little distruption and consistent depth.The 345HD has frabricated box section tining arms in the aeration mechanism and bias-rod implement heads making it extremely durable.  The operating width is 45cm (18 inches) with an aeration depth adjustable to 13cm (5")  The forward speed is 45 m / min (49 yds) giving up to 1200 sq yds / hour coverage.

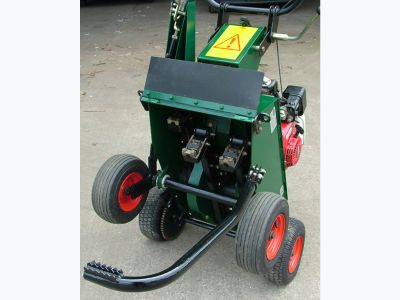

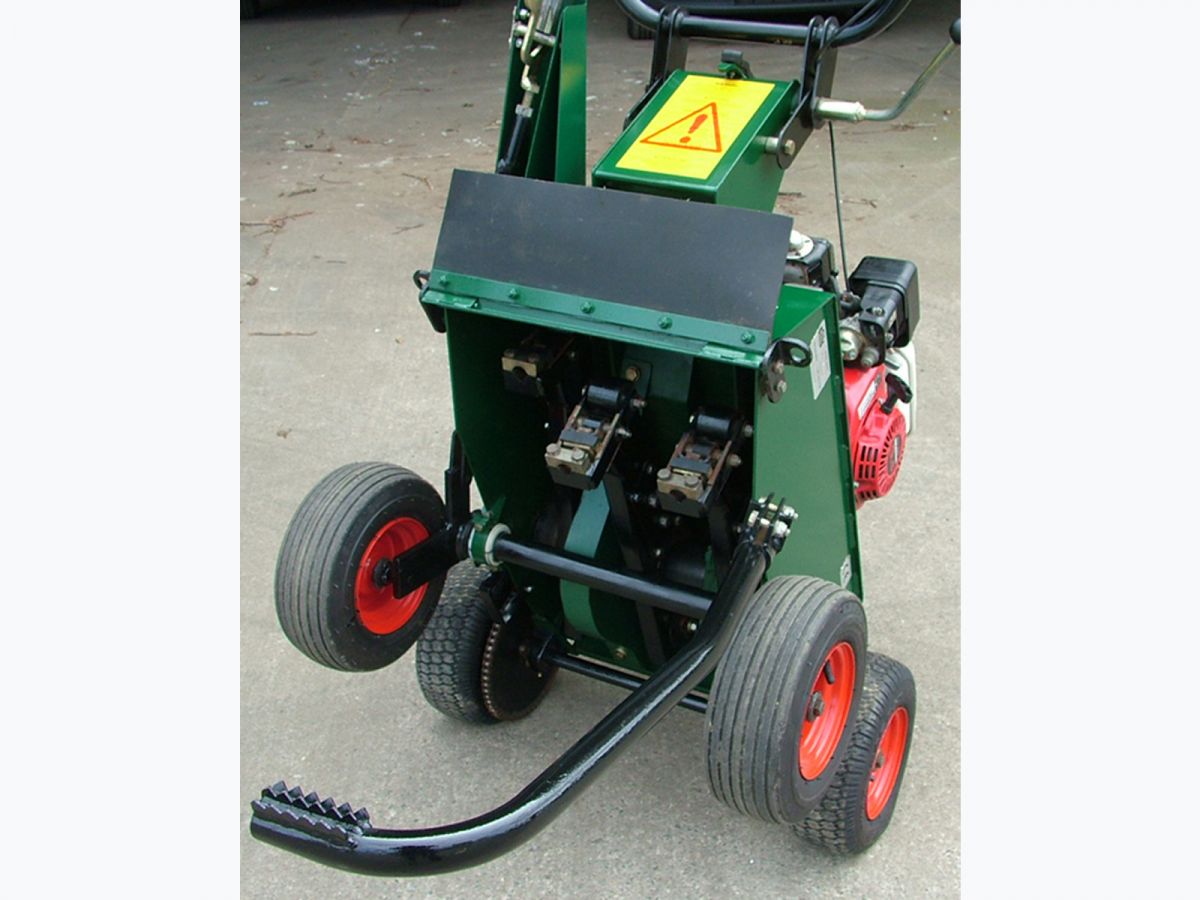

The shock absorbing aeration mechanism is driven with a large diameter crank and sealed for life bearings giving many years of trouble-free service with the minimum of maintenance. The front ground drive wheel are fixed in gear and the rear wheels are free for turning and maneouvring the machine, raising and lowering in and out of work is tread bar assisted. The operator handles are mounted to the chassis using three point shock absorbing mountings for low operator handle vibration levels (HAV). Set-up and operator controls are simple making it suitable for private or contract / hire capable of working on fine sports turf or rougher surfaces such as estates and gardens with little surface disruption and consistent depth adjustable to 5". The overall width of the machine is 80cm (32") so it can access pedestrian gateways/ doorways etc.

The 345HD can punch holes from 35mm to 75mm apart at 1200 square meters per hour (see technical specifications.) Quick-change Twin, Triple, Quadra, Quint and Cluster Tine Holders can be fitted using Hollow, Solid, Slitting or Star Tines from Micro to Jumbo. The 345HD accepts the full range of SC (spigot clamp) style tine holders for Solid, Needle, Hollow, Chisel, Star and Cluster Tines (see TINES & HOLDERS)   A Windrow attachment is available when Hollow Tining to row the cores for collection. A surface roller attachment can be fitted to smooth the surface when solid or needle tining, see ACCESSORIES.





Technical Specifications

Swath 480mm (18")
Weight HD 160kg (352lbs)
Width 80cm (32")
Length 148cm (58")
Height 91cm (36")
Engine 6.5 HP Honda GX 200
Drive Single vee-belt & Oring sealed 5/8" chain

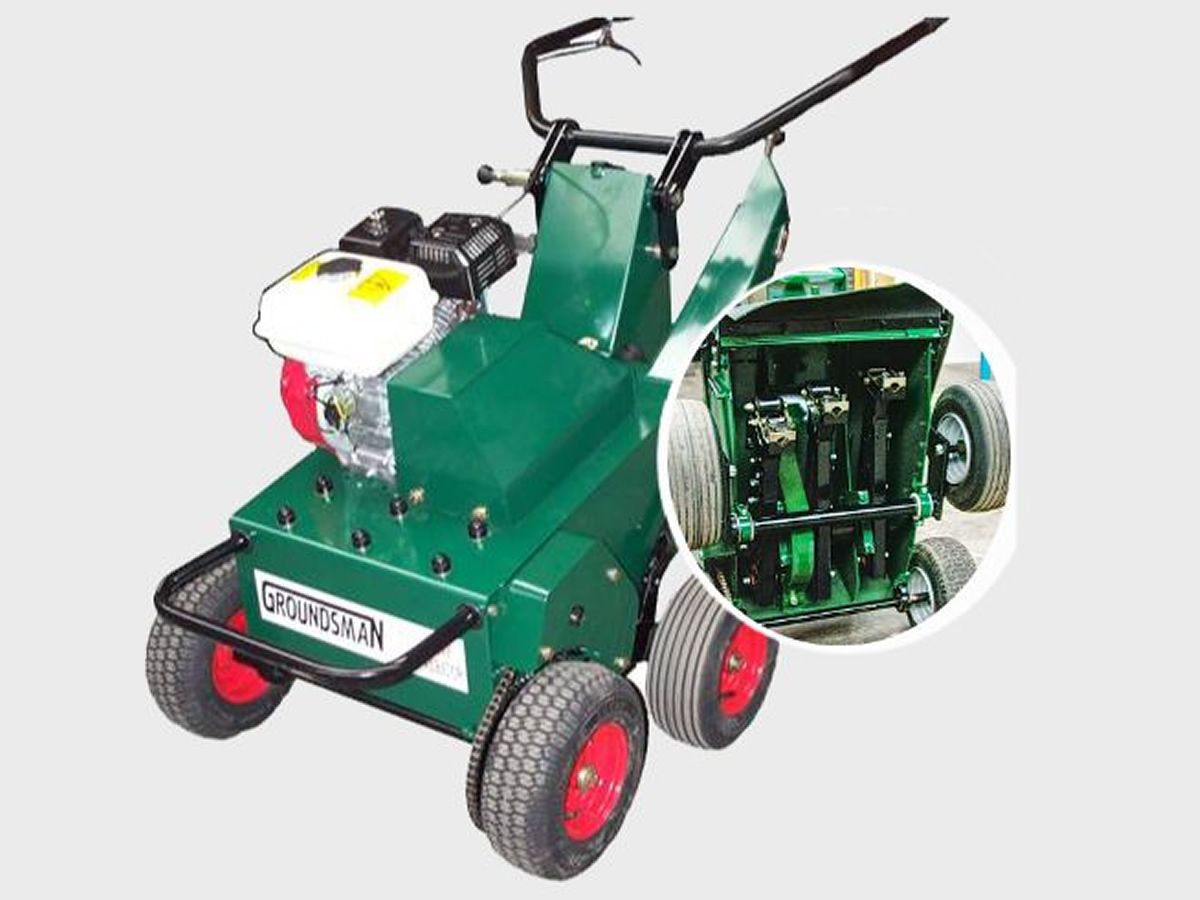

Mechanism Sealed bearing crank driven box section tining arms with bias-rod spigot clamp implement heads.
Tyres 4 Pneumatic 13x500 x 6




Performace Chart

Aeration Pattern Forward Speed Coverage Penetration
75mm (3") Centres
(Twin Holder)
38m/min
(42 yds)
1026 sq/m per hr
(1260 sq yds)
130mm max
(5") max





< Previous Page


Key Benefits
  • Robust construction, low maintenance
  • Simple controls, easy to operate
  • Adjustable aeration up to 130mm (5 inches)
  • Comprehensive range of tines and holders
  • Fine turf and gardens
  • Aeration pattern 75mm (3") centres down to
    35mm (under 1 1/2")
  • Speed 38m/min (42yds)
  • Coverage 1026 sq m/Hr (1260 sq yds)
  • Pneumatic 13x400x6 Tyres
  • Honda GX200 6.5HP OHV Engine
